Touch and Keyborad for Siemens SIMATIC KTP600 Basic mono/color

Sale price $59.99 Regular price $79.99

Tax included. Shipping calculated at checkout.

With Glrassin 6 months warranty, Touchscreen and membrane keyboard for Siemens SIMATIC mono/color PN and KTP600 Basic color DP HMI Touch Panel repair Replacement. The Touch screen is 138mm in length, 109mm in width and the membrane keyboard is 180mm in length, 142mm in widthGlrassin Spare Parts are used to repair HMI machines.  The Kit includes a piece of touchscreen and a Membrane Switch. Also can sell separately, You can select by the option.

The KTP600 Basic screen keyboard appears on the HMI device touch screen when you touch an operating element that requires input.

    Free standard shipping is available for standard delivery of this touch screen and keyboard. Please carefully compare the dimensions with your machine and read the shipping and FAQ section before buying.  If you are not sure whether this touchscreen is suitable for your machine, send an email that attaches the picture of your old screen to us to confirm before you make the order. Our email address is sales@glrassin.com.

    Touch screen and membrane Keyborad for Siemens SIMATIC KTP600 Basic mono/color

    Specific parameters:

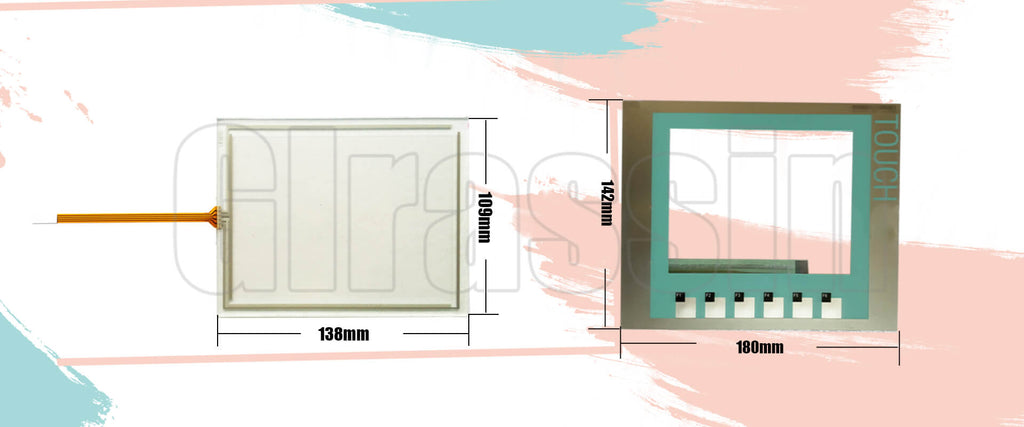

    Touch Long: 138mm Touch Width:  109mm
    Keypad Long: 180mm Keypad Width: 142mm
    Warranty: 6 months Include: Touch and Keyboard
    Softkeys: 6 Labeling the function keys: System-specific with labelling strips




    Suitable for the following model:

    Part Number  Description
    6AV6647-0AB11-3AX0
    SIMATIC HMI KTP600 Basic mono PN, Basic Panel, Key/touch operation, 6" STN display, 4 gray levels, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD
    6AV6647-0AC11-3AX0 SIMATIC HMI KTP600 Basic Color DP, Basic Panel, Key/touch operation, 6" TFT display, 256 colors, MPI/PROFIBUS DP interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V11/ STEP 7 Basic V11, contains open-source software, which is provided free of charge see enclosed CD
    6AV6647-0AD11-3AX0 SIMATIC HMI KTP600 Basic Color PN, Basic Panel, Key/touch operation, 6" TFT display, 256 colors, PROFINET interface, configurable as of WinCC flexible 2008 SP2 Compact/ WinCC Basic V10.5/ STEP 7 Basic V10.5, contains open-source software, which is provided free of charge see enclosed CD
    6AV6545-0AG10-0AX0 SSIPLUS HMI KTP600 Basic Color PN -25...+60°C with conformal coating based on "6AV6647-0AD11-3AX0 5.7" TFT display, 256 colors Ethernet" interface
