Touch and Keyborad for Siemens SIMATIC MP 270 10“ Replacement

Sale price $229.99 Regular price $239.99

Tax included. Shipping calculated at checkout.

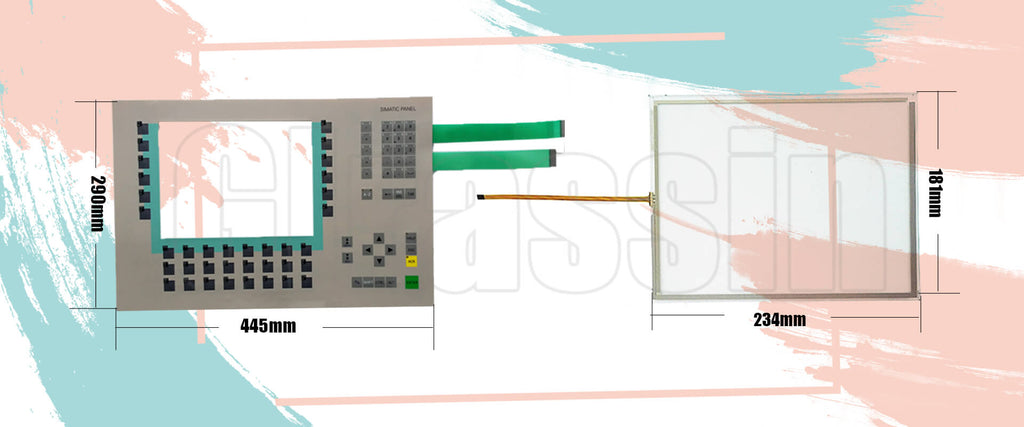

With Glrassin 6 months warranty, Touchscreen for SIMATIC Multi Panel MP 270B 6" HMI Touch Panel repair Replacement. The Touch screen is 234mm in length, 181mm in width and the membrane keyboard is 445mm in length, 290mm in widthGlrassin Spare Parts are used to repair HMI machines.  The Kit includes a piece of touchscreen and a Membrane Switch. Also can sell separately, You can select by the option.

The SIMATIC Multi Panels MP 270 10" are included in the new product category
“Multifunctional Platform”. This product category is positioned in the product hierarchy between the optimized process and application components, such as operator panels and PLCs on the one hand, and industrial PCs on the other.

The operating status of the machine or system to be monitored can be observed
on the MP270.

The MP270 consists of two functional blocks:

  • Function keys/Softkeys (Keys K1 to K16 and F1 to F20)
  • System keys

Please carefully compare the dimensions with your machine and read the shipping and FAQ section before buying.  If you are not sure whether this touchscreen is suitable for your machine, send an email that attaches the picture of your old screen to us to confirm before you make the order. Our email address is sales@glrassin.com.


Touch and Keyborad for Siemens SIMATIC MP 270 10“ Replacement

Specific parameters:

Touch Long: 138mm Touch Width:  109mm
Keypad Long: 445mm Keypad Width: 290mm
Warranty: 6 months Include: Touch and Overlay
System keys: 33
(3 with LEDs)
Function keys: 36
(28 with LEDs)
Softkeys: 20 Labeling the function keys: System-specific with labelling strips




Suitable for the following model:

Part Number  Description
6AV6542-0AA15-1AX0
SIMATIC MP270 MULTI PANEL 10" CSTN-DISPLAY
6AV6542-0AB15-1AX0 SIMATIC MP270 MULTI PANEL 10" TFT-DISPLAY
6AV6542-0AC15-2AX0 SIMATIC MP270 MULTI PANEL 10" STN DISPLAY 12 MB FLASH-EPROM / 32 MB RAM CONFIGURABLE WITH PROTOOL FROM VERSION V5.2+SP2
6AV6542-0AD15-2AX0 SIMATIC MP270 MULTI PANEL 10" TFT DISPLAY 12 MB FLASH-EPROM / 32 MB RAM CONFIGURABLE WITH PROTOOL FROM VERSION V5.2+SP2
6AV6542-0AE15-2AX0 SIMATIC MP270 MULTI PANEL 10" CSTN DISPLAY 8 MB FLASH-EPROM / 32 MB RAM CONFIGURABLE W. PROTOOL FROM VERSION V5.2
6AV6542-0AF15-2AX0 SIMATIC MP270 MULTI PANEL 10" TFT DISPLAY 8 MB FLASH-EPROM / 32 MB RAM CONFIGURABLE W. PROTOOL FROM VERSION V5.2
6AV6545-0AH10-0AX1 SIMATIC MP 270B Key Multi Panel 10.4" TFT display 4 MB configuration memory, configurable with ProTool From Version V6.0
6AV6545-0AG10-0AX0 SIMATIC MP 270B Touch Multi Panel 10.4" TFT display 4 MB configuration memory, configurable with ProTool From Version V6.0
